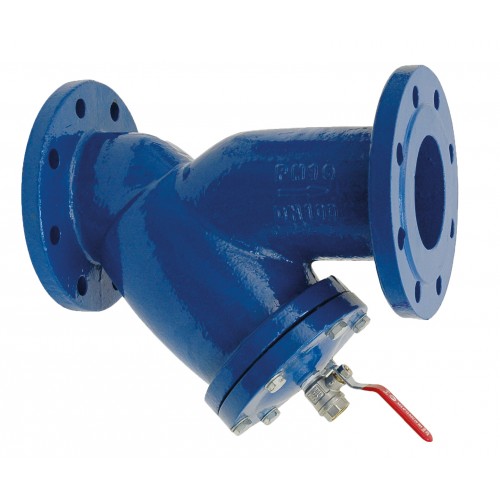

Flanged cast iron strainer - "Y" type - With drain valve

Applications : Water supply network, hydraulic equipment.

Working temperatures : 0°C to +80°C.

Specifications :

GG20 Cast iron body & bonnet from DN15 to DN150.

GJS450 Ductile iron body & bonnet starting from DN200.

NBR Seat.

Epoxy coated.

Carbon steel bolts & nuts.

304 Stainless steel screen.

Connection : ISO PN10/16.

Installations : Horizontal or vertical position with downward fluids.

Face to face : According to DIN 3202-01.

Agreements & tests :

ACS.

Bored flanges according to EN 1092.
