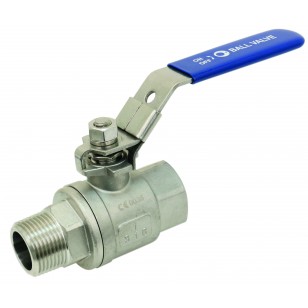

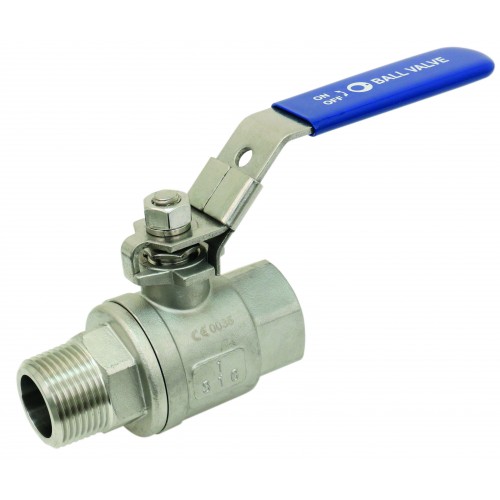

Monobloc stainless steel ball valve M/F 2 pieces - Full bore - Flat blue handle

Applications : For all compatible fluids, air (air : Max. 7 Bars at ambient temperature).

Working temperatures : -20°C to +180°C at zero pressure.

Specifications :

ASTM A351 CF8M Stainless steel body.

316 Stainless ball & stem.

PTFE Seat with 15% fiberglass.

PTFE Packing gland seat.

304 Stainless steel locking device handle & nut.

Anti blow-out stem.

Connections : BSP Conical threaded - BSP Cylindrical threaded.

Agreements & tests : PED 97/23/CE N° 0035 or 0036.
